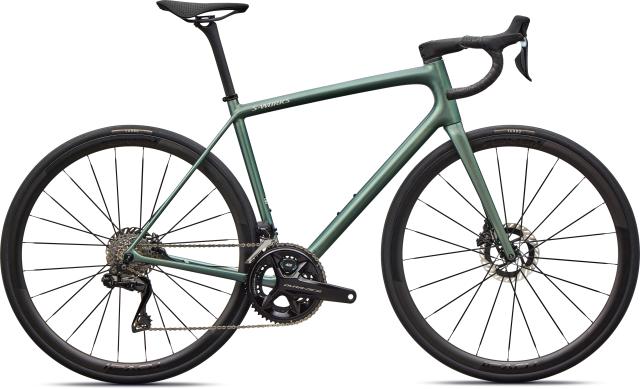

SPECIALIZED AETHOS S-WORKS DURA ACE 12 V Di2 + POWERMETER
Top off the world’s lightest frame with Shimano’s legendary Dura-Ace Di2 groupset and Roval’s featherweight Alpinist wheels and you’re left with a perfectly balanced top-tier ride that gives up nothing in the name of performance. This is the ultra ligth ultimate climbing machine for the Dolomites!
Equipped with Shimano Dura Ace Di2 12 speed groupset, compact crank 50/34 and 11 – 34 cassette. Roval Alpinist CLX carbon wheel set.
Available sizes 52 (S) – 54 (M) – 56 (L) – 58 (XL)
Technical Specifications
FRAMESET
Frame
S-Works Aethos FACT 12r Carbon, Rider First Engineered™, Threaded BB, Electronic cable routing only, 12x142mm thru-axle, flat-mount disc
DRIVETRAIN
Cassette
Shimano Dura-Ace, 12-speed, 11-34t
Chainrings
50/34T
Crankset
Shimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter
Rear Derailleur
Shimano Dura-Ace R9250, 12-speed
Front Derailleur
Shimano Dura-Ace R9250, braze-on
Shift Levers
Shimano Dura-Ace R9270, hydraulic disc
WHEELS
Roval Alpinist CLX, 21mm internal width carbon rim, 33mm depth, Win Tunnel Engineered, Roval AFD hub, 24h, DT Swiss Aerolite spokes
BRAKES
Rear Brake
Shimano Dura-Ace 9200, Hydraulic Disc
Front Brake
Shimano Dura-Ace 9200, Hydraulic Disc
COCKPIT
SeatPost
Roval Alpinist Carbon Seatpost
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Tape
Supacaz Super Sticky Kush
Handlebars
S-Works Short & Shallow, 125mm Drop, 75mm Reach w/Di2 Hole
Geometry
| 52 | 54 | 56 | 58 | |||
|---|---|---|---|---|---|---|
| Crank Length | 170mm | 172.5mm | 172.5mm | 175mm | ||
| Handlebar Width | 400mm | 420mm | 420mm | 440mm | ||
| Stem Length | 90mm | 100mm | 100mm | 110mm | ||
| Saddle Width | 155mm | 143mm | 143mm | 143mm | ||
| Seatpost Length | 300mm | 360mm | 360mm | 360mm | ||
| Stack | 527mm | 544mm | 565mm | 591mm | ||
| Reach | 380mm | 384mm | 395mm | 402mm | ||
| Head Tube Length | 120mm | 137mm | 157mm | 184mm | ||
| Head Tube Angle | 72.5° | 73° | 73.5° | 73.5° | ||
| BB Height | 266mm | 268mm | 268mm | 268mm | ||
| BB Drop | 74mm | 72mm | 72mm | 72mm | ||
| Trail | 58mm | 58mm | 55mm | 55mm | ||
| Fork Length, Full | 369mm | 369mm | 369mm | 369mm | ||
| Fork Rake/Offset | 47mm | 44mm | 44mm | 44mm | ||
| Front Center | 577mm | 579mm | 591mm | 606mm | ||
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | ||
| Wheelbase | 975mm | 978mm | 991mm | 1005mm | ||
| Top Tube Length, Horizontal | 531mm | 540mm | 562mm | 577mm | ||
| Bike Standover Height | 728mm | 748mm | 769mm | 796mm | ||
| Seat Tube Length | 462mm | 481mm | 504mm | 532mm | ||
