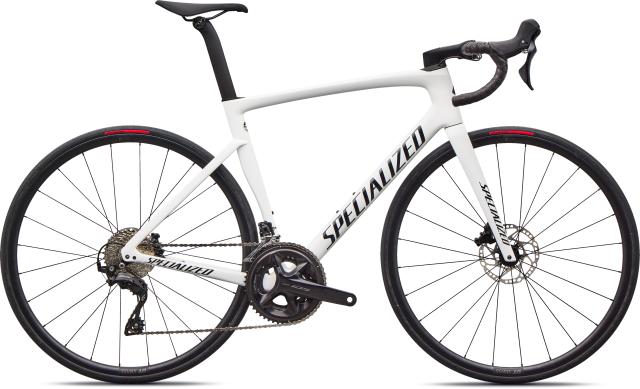

SPECIALIZED TARMAC SL7 SPORT Shim. 105 Disk cass. 11-36
The new Tarmac is designed to go fast, there’s no if’s, and’s, or but’s about that—but it represents so much more than just aerodynamic prowess. With a light-weight, Rider-First Engineered™ frame, it delivers the best-possible ride characteristics, no matter the size. So no matter what you have planned for your new Tarmac, its ready to help you achieve your goals—PRs, KOMs, or podium top-steps. One bike to rule them all.
compact crank 50/34 rear cassette 11-36
Available sizes 49 cm (XS) – 52 cm (S) – 54 cm (M) – 56 cm (L) – 58 cm (XL) – 61 cm (XXL)
Technical Specifications
Frameset
Tarmac SL7 FACT 9r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Drivetrain
Front Derailleur Shimano 105, Braze-on
Rear Derailleur Shimnao 105 R7100, 12-Speed
Cassette Shimano 105, 12-speed, 11-36
Chain Shimano SLX, M7100, 12-speed
Crankset Shimano 105, 12-speed 50/34
Wheels & Tires
Front TireTurbo Pro, 700×26
Front WheelDT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Tire Turbo Pro, 700×26
Rear Wheel DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Inner Tubes 700×20-28, 48mm Presta Valve
Cockpit
Stem Tarmac integrated stem, 6-degree
Handlebars Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Saddle Body Geometry Power Sport, steel rails
SeatPost 2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset
Geometry
| 49 | 52 | 54 | 56 | 58 | |||
|---|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm | |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm | |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm | |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm | |
| Seatpost Length | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm | |
| Frame Stack | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm | |
| Frame Reach | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm | |
| Stack to Stem | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm | |
| Reach to Stem | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm | |
| Head Tube Length | 109mm | 120mm | 137mm | 157mm | 184mm | 204mm | |
| BB Height | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm | |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm | |
| Wheelbase | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm | |
| Top Tube Length, Horizontal | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm | |
| Bike Standover Height | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm | |
| Seat Tube Length | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm | |
