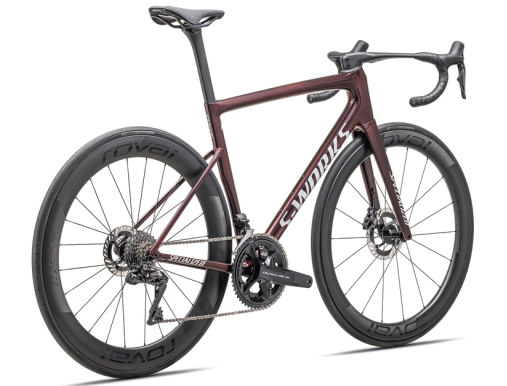

SPECIALIZED S-WORKS TARMAC SL8 DURA ACE DI2 12 SPEED + POWERMETER
THE NEW TARMAC SL8 THE FASTEST BIKE ON ANY ROAD. Equipped with the new Shimano Dura Ace Disk Di2 12-speed electronic group with integrated Powermeter. Roval Rapide CLX carbon rims.
compact crank and 11 – 34 cassette
Available sizes: 52 (S) – 54 (M) – 56 (L) – 58 (XL)
Technical Specifications
Frameset
Frame
S-Works Tarmac SL8 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension
Fork
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake
Shimano Dura-Ace R9270, hydraulic disc 160mm rotor
Rear Brake
Shimano Dura-Ace R9270, hydraulic disc 140mm rotor
Drivetrain
Shift Levers
Shimano Dura-Ace R9270, hydraulic disc
Front Derailleur
Shimano Dura-Ace R9250, braze-on
Rear Derailleur
Shimano Dura-Ace R9250, 12-speed
Cassette
Shimano Dura-Ace, 12-speed, 11-34t
Chain
Shimano Dura-Ace, 12-speed
Crankset
Shimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision 3+ Pro dual-sided powermeter
Chainrings
52/34T
Bottom Bracket
Shimano Dura-Ace, BB-R9200
Wheels & Tires
Front Tire
S-Works Turbo Rapidair 2BR, 700x26mm
Front Wheel
Roval Rapide CLX II, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval AFD hub, 18h, DT Swiss Aerolite spokes
Rear Tire
S-Works Turbo Rapidair 2BR, 700x26mm
Rear Wheel
Roval Rapide CLX II, 21mm internal width carbon rim, 60mm depth, Win Tunnel Engineered, Roval AFD hub, 24h, DT Swiss Aerolite spokes
Inner Tubes
Turbo Ultralight, 60mm Front, 80mm Rear, Presta valve
Cockpit
Stem
Roval Rapide Cockpit, Integrated Bar/Stem
Handlebars
Roval Rapide Cockpit, Integrated Bar/Stem
Tape
Supacaz Super Sticky Kush
Saddle
Body Geometry S-Works Power with Mirror, carbon fiber rails, carbon fiber base
SeatPost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Weight
Weight
6.62 kg (14 lb, 9.5 oz)
Weight Size
56cm
Geometry
| 52 | 54 | 56 | 58 | ||||
|---|---|---|---|---|---|---|---|
| Crank Length | 170mm | 172.5mm | 172.5mm | 175mm | |||
| Handlebar Width | 400mm | 400mm | 420mm | 420mm | |||
| Stem Length | 90mm | 100mm | 100mm | 110mm | |||
| Saddle Width | 155mm | 143mm | 143mm | 143mm | |||
| Seatpost Length | 300mm | 380mm | 380mm | 380mm | |||
| Frame Stack | 527mm | 544mm | 565mm | 591mm | |||
| Frame Reach | 380mm | 384mm | 395mm | 402mm | |||
| Stack to Stem | 535mm | 552mm | 573mm | 599mm | |||
| Reach to Stem | 377mm | 381mm | 393mm | 400mm | |||
| Head Tube Length | 120mm | 137mm | 157mm | 184mm | |||
| Top Tube Length, Horizontal | 531mm | 541mm | 563mm | 577mm | |||
| Bike Standover Height | 746mm | 768mm | 786mm | 808mm | |||
| Seat Tube Length | 456mm | 473mm | 494mm | 515mm | |||
