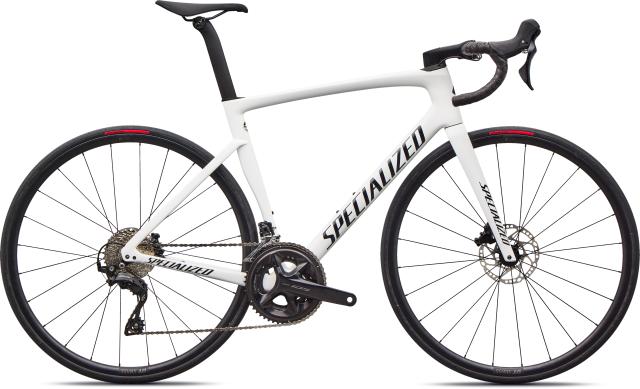

SPECIALIZED TARMAC SL7 SPORT Shim. 105 Disk cass. 11-36
Aufgrund des leichten Rahmens und des Rider-First Engineered™-Konzepts sorgt es auch für die bestmöglichen Fahreigenschaften über alle Rahmengrößen hinweg. Also, was auch immer du geplant hast, ob PR, KOM oder ein Platz auf dem Podium, das Tarmac SL7 wird dir helfen, deine Ziele zu erreichen. Ein Bike, sie alle zu bezwingen.
KOMPACT KURBEL 50/34 CASSETTE 11-36
Verfügbare Größen 49 cm (XS) – 52 cm (S) – 54 cm (M) – 56 cm (L) – 58 cm (XL) – 61 cm (XXL)
Technische Spezifikationen
Rahmenset
Rahmen
Tarmac SL7 FACT 9r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fahrwerk
Gabel
FACT Carbon, 12x100mm thru-axle, flat-mount disc
Bremsen
Vorderradbremse
Shimano 105, Hydraulic disc
Hinterradbremse
Shimano 105, Hydraulic disc
Antrieb
Schalthebel Shimano 105
Umwerfer Shimano 105, Braze-on
Schaltwerk Shimnao 105 R7100, 12-Speed
Kassette Shimano 105, 12-speed, 11-36
KetteShimano SLX, M7100, 12-speed
Kurbelgarnitur Shimano 105, 12-speed
Laufräder und Reifen
Vorderreifen Turbo Pro, 700×26
Vorderrad DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Hinterreifen Turbo Pro, 700×26
Hinterrad DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
Cockpit
Vorbau Tarmac integrated stem, 6-degree
Lenker Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Sattel Body Geometry Power Sport, steel rails
Sattelstütze 2021 S-Works Tarmac Carbon seat post, FACT Carbon, 20mm offset
Geometrie
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| Lunghezza Pedivella | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm | |
| Larghezza Manubrio | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm | |
| Lunghezza attacco manubrio | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm | |
| Larghezza sella | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm | |
| Lunghezza reggisella | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm | |
| Stack | 504mm | 517mm | 534mm | 555mm | 581mm | 602mm | |
| Frame Reach | 378mm | 383mm | 387mm | 398mm | 405mm | 411mm | |
| Stack to Stem | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm | |
| Reach to Stem | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm | |
| Lunghezza Tubo sterzo | 102mm | 113mm | 131mm | 151mm | 178mm | 198mm | |
| Angolo Sterzo | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° | |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm | |
| Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm | |
| Lunghezza Forcella (intera) | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm | |
| Offset forcella / Rake | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm | |
| Avancorsa | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm | |
| Interasse | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm | |
| Lunghezza Tubo Orizz. virtuale | 509mm | 531mm | 541mm | 563mm | 577mm | 595 |
