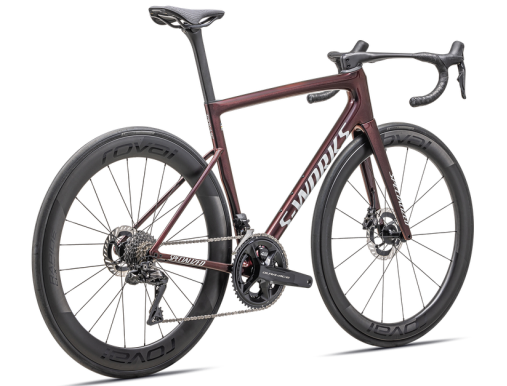

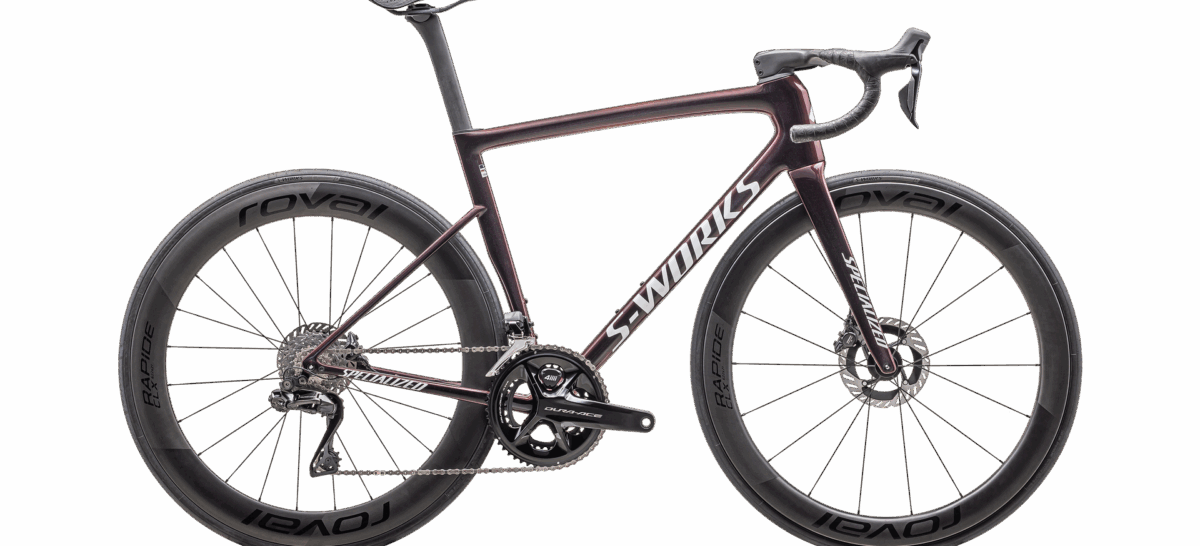

SPECIALIZED S-WORKS TARMAC SL8 DURA ACE DI2 12 SPEED + POWERMETER
DAS NEUE TARMAC SL8 DAS SCHNELLSTE BIKE AUF JEDER STRASSE. Ausgestattet mit der neuen Shimano Dura Ace Disk Di2 12-fach Elektronikgruppe mit integriertem Powermeter. Roval Rapide CLX Carbonfelgen.
Compact Kurbel und 11 – 34 Cassette
Verfügbare Größen 52 (S) – 54 (M) – 56 (L) – 58 (XL)
Technische Spezifikationen
Rahmenset
Rahmen
S-Works Tarmac SL8 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fahrwerk
Gabel
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Bremsen
Vorderradbremse
Shimano Dura-Ace R9270, hydraulic disc 160mm rotor
Hinterradbremse
Shimano Dura-Ace R9270, hydraulic disc 140mm rotor
Antrieb
Schalthebel
Shimano Dura-Ace R9270, hydraulic disc
Umwerfer
Shimano Dura-Ace R9250, braze-on
Schaltwerk
Shimano Dura-Ace R9250, 12-speed
Kassette
Shimano Dura-Ace, 12-speed, 11-34t
Kette
Shimano Dura-Ace, 12-speed
Kurbelgarnitur
Shimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision 3+ Pro dual-sided powermeter
Kettenblätter
52/34T
Tretlager
Shimano Dura-Ace, BB-R9200
Laufräder und Reifen
Vorderreifen
S-Works Turbo Rapidair 2BR, 700x26mm
Vorderrad
Roval Rapide CLX II, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval AFD hub, 18h, DT Swiss Aerolite spokes
Hinterreifen
S-Works Turbo Rapidair 2BR, 700x26mm
Hinterrad
Roval Rapide CLX II, 21mm internal width carbon rim, 60mm depth, Win Tunnel Engineered, Roval AFD hub, 24h, DT Swiss Aerolite spokes
Schläuche
Turbo Ultralight, 60mm Front, 80mm Rear, Presta valve
Cockpit
Vorbau
Roval Rapide Cockpit, Integrated Bar/Stem
Lenker
Roval Rapide Cockpit, Integrated Bar/Stem
Lenkerband
Supacaz Super Sticky Kush
Sattel
Body Geometry S-Works Power with Mirror, carbon fiber rails, carbon fiber base
Sattelstütze
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Gewicht
6.62 kg (14 lb, 9.5 oz)
Gemessene Rahmengröße
56cm
Geometrie
| 52 | 54 | 56 | 58 | ||||
|---|---|---|---|---|---|---|---|
| Kurbellänge | 170mm | 172.5mm | 172.5mm | 175mm | |||
| Lenkerbreite | 400mm | 400mm | 420mm | 420mm | |||
| Vorbaulänge | 90mm | 100mm | 100mm | 110mm | |||
| Sattelbreite | 155mm | 143mm | 143mm | 143mm | |||
| Länge Sattelstütze | 300mm | 380mm | 380mm | 380mm | |||
| Frame Stack | 527mm | 544mm | 565mm | 591mm | |||
| Frame Reach | 380mm | 384mm | 395mm | 402mm | |||
| Stack to Stem | 535mm | 552mm | 573mm | 599mm | |||
| Reach to Stem | 377mm | 381mm | 393mm | 400mm | |||
| Radstand | 975mm | 978mm | 991mm | 1006mm | |||
| Oberrohrlänge, horizontal | 531mm | 541mm | 563mm | 577mm | |||
| Sitzrohrlänge | 456mm | 473mm | 494mm | 515mm | |||
| Sitzrohrwinkel | 74° | 74° | 73.5° | 73.5° |
